C5112/C5116/C5120/C5123/C5126 Conventional vertical lathe machine for sale
1. Function and features:
1. Heavy Duty Lathe Machine is mostly used to process middle-diameter tire mould and flanges, various valves and pipelines, pressure vessels, screw propeller, steamer machine accessories , plastic mould, shafts and other work-piece
2. Heavy Duty Lathe Machine is suitable for processing the internal/external cylindrical surface, conical surface, end face etc
3. Spindle bearings use domestic famous-brand company products.
4. Headstock takes symmetrical structure to make thermal deformation be even, avoiding the spindle center generates offsets.
5. Gears in headstock and guide way are processed by quenching to ensure accurate transmission and high rigidity.
6. Vertical lathe table inlaids with zinc alloy wear-resistant guide guard and can access pressure oil (0.2-0.4MPA) between the rails for improving load-carrying ability of workbench.
7. Vertical lathe casting has passed through strict artificially aged and vibration aging in order to make sure the rigidity and stability of lathe.
2. Main technical data:
| Specification | Unit | C5108*H/2 | C5112*H/3 | C5116*H/5 |
| Max. turning Diameter | Mm | 800 | 1250 | 1600 |
| Table diameter | Mm | 720 | 1000 | 1400 |
| Max. height of workpiece | Mm | 800 | 1000/1200 | 1000/1400 |
| Max. weight of workpiece | T | 2 | 3 | 5 |
| Max. torque of table | KN.m | 20 | 25 | 30 |
| Range of table speeds | r/min | 10-315 | 6.3-200 | 5-160 |
| Max. cutting force of rail head | KN | 18 | 18 | 22 |
| Swivel of rail head | ° | ±30° | ±30° | ±30° |
| Range of feed rates | Mm/min | 0.8-86 | 0.8-86 | 0.8-86 |
| Horizontal travel of railhead | Mm | 570 | 700 | 915 |
| Ram travel of rail head | Mm | 650 | 650 | 800 |
| Rapid traverse of tool head | Mm/min | 1800 | 1800 | 1800 |
| Elevating speed of cross rail | Mm/min | 440 | 440 | 440 |
| Height of tool bar section | Mm | 30*40 | 30*40 | 30*40 |
| Power of main motor | KW | 22 | 22 | 30 |
| Overall dimensions | mm | 2080*1820*2730 | 2360*2300*35890 | 2800*2700*3870 |
| Weight of machine | t | 7.8 | 9.5 | 12.7 |

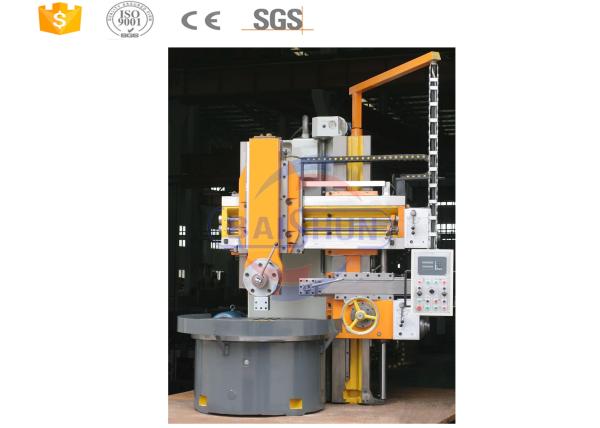

3. Machine pictures for your reference:
Our Services
1. 24 Hours after sales service by E-mail or Phone.
2. 100% response rate.
3. Engineers available to service overseas.
4. OEM service is available
5. Warranty: 12 months, beyond the warranty period, all spare parts offered to you with factory price.
